Increasingly, organizations across industries are turning to generative AI foundation models (FMs) to enhance their applications. To achieve optimal performance for specific use cases, customers are adopting and adapting these FMs to their unique domain requirements. This need for customization has become even more pronounced with the emergence of new models, such as those released by DeepSeek.
However, customizing DeepSeek models effectively while managing computational resources remains a significant challenge. Tuning model architecture requires technical expertise, training and fine-tuning parameters, and managing distributed training infrastructure, among others. This often forces companies to choose between model performance and practical implementation constraints, creating a critical need for more accessible and streamlined model customization solutions.
In this two-part series, we discuss how you can reduce the DeepSeek model customization complexity by using the pre-built fine-tuning workflows (also called “recipes”) for both DeepSeek-R1 model and its distilled variations, released as part of Amazon SageMaker HyperPod recipes.
In this first post, we will build a solution architecture for fine-tuning DeepSeek-R1 distilled models and demonstrate the approach by providing a step-by-step example on customizing the DeepSeek-R1 Distill Qwen 7b model using recipes, achieving an average of 25% on all the Rouge scores, with a maximum of 49% on Rouge 2 score with both SageMaker HyperPod and SageMaker training jobs. The second part of the series will focus on fine-tuning the DeepSeek-R1 671b model itself.
At the time of this writing, the DeepSeek-R1 model and its distilled variations for Llama and Qwen were the latest released recipe. Check out sagemaker-hyperpod-recipes on GitHub for the latest released recipes, including support for fine-tuning the DeepSeek-R1 671b parameter model.
At re:Invent 2024, we announced the general availability of Amazon SageMaker HyperPod recipes. SageMaker HyperPod recipes help data scientists and developers of all skill sets to get started training and fine-tuning popular publicly available generative AI models in minutes with state-of-the-art training performance. These recipes include a training stack validated by Amazon Web Services (AWS), which removes the tedious work of experimenting with different model configurations, minimizing the time it takes for iterative evaluation and testing. They automate several critical steps, such as loading training datasets, applying distributed training techniques, automating checkpoints for faster recovery from faults, and managing the end-to-end training loop.
Recipes, paired with the resilient infrastructure of AWS, (Amazon SageMaker HyperPod and Amazon SageMaker Model Training) provide a resilient training environment for fine-tuning FMs such as DeepSeek-R1 with out-of-the-box customization.
To help customers quickly use DeepSeek’s powerful and cost-efficient models to accelerate generative AI innovation, we released new recipes to fine-tune six DeepSeek models, including DeepSeek-R1 distilled Llama and Qwen models using supervised fine-tuning (SFT), Quantized Low-Rank Adaptation (QLoRA), Low-Rank Adaptation (LoRA) techniques. In this post, we introduce these new recipes and walk you through a solution to fine-tune a DeepSeek Qwen 7b model for an advanced medical reasoning use case.

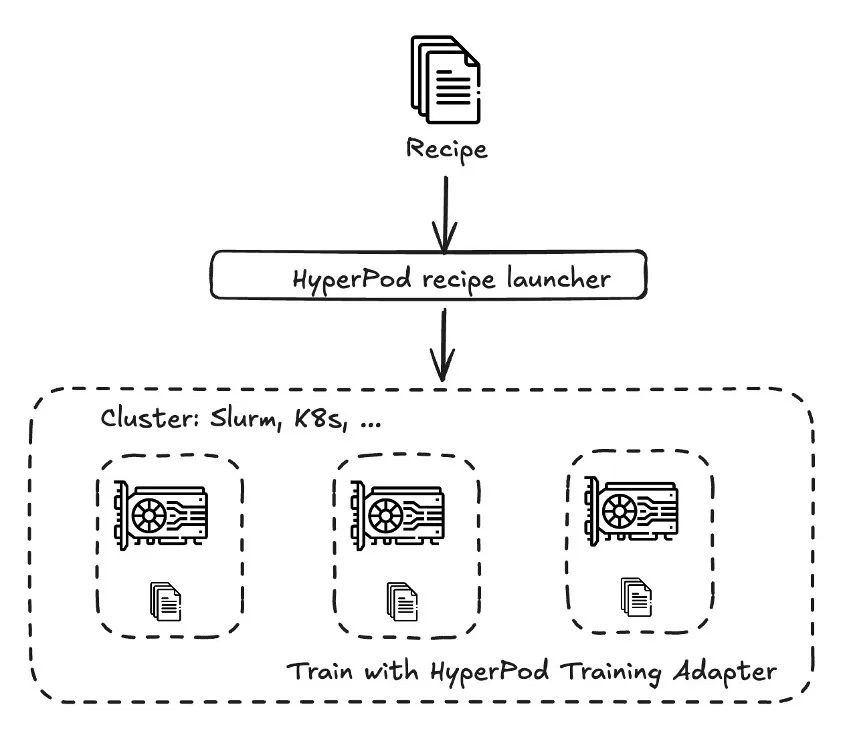

At its core, as depicted in the following diagram, the recipe architecture implements a hierarchical workflow that begins with a recipe specification that covers a comprehensive configuration defining the training parameters, model architecture, and distributed training strategies. These recipes are processed through the HyperPod recipe launcher, which serves as the orchestration layer responsible for launching a job on the corresponding architecture. The launcher interfaces with underlying cluster management systems such as SageMaker HyperPod (Slurm or Kubernetes) or training jobs, which handle resource allocation and scheduling. It’s a familiar NeMo-style launcher with which you can choose a recipe and run it on your infrastructure of choice (SageMaker HyperPod or training).
For example, after choosing your recipe, you can pre-train or fine-tune a model by running python3 main.py recipes=recipe-name
. Alternatively, you can use a launcher script, which is a bash script that is preconfigured to run the chosen training or fine-tuning job on your cluster. You can check out main.py (NeMo style launcher) and launcher scripts for DeepSeek on the GitHub repository hosting SageMaker HyperPod recipes.
A key component of this architecture is the HyperPod training adapter for NeMo, which is built on the NVIDIA NeMo framework and Neuronx Distributed training package, which loads data, creates models, and facilitates efficient data parallelism, model parallelism, and hybrid parallelism strategies, which enables optimal utilization of computational resources across the distributed infrastructure. The architecture’s modular design allows for scalability and flexibility, making it particularly effective for training LLMs that require distributed computing capabilities.
You can run these recipes using SageMaker HyperPod or as SageMaker training jobs. For organizations that require granular control over training infrastructure and extensive customization options, SageMaker HyperPod is the ideal choice. SageMaker training jobs, on the other hand, is tailored for organizations that want a fully managed experience for their training workflows. To learn more details about these service features, refer to Generative AI foundation model training on Amazon SageMaker.
In the next sections, we go over the solution architecture for these services before presenting a step-by-step implementation example for each.
To submit jobs using SageMaker HyperPod, you can use the HyperPod recipes launcher, which provides an straightforward mechanism to run recipes on both Slurm and Kubernetes. After you choose your orchestrator, you can choose your recipe’s launcher and have it run on your HyperPod cluster. The launcher will interface with your cluster with Slurm or Kubernetes native constructs. For this post, we use the HyperPod recipes launcher mechanism to run the training on a Slurm cluster. The following image shows the solution architecture for SageMaker HyperPod.
The workflow for SageMaker training jobs begins with an API request that interfaces with the SageMaker control plane, which manages the orchestration of training resources. The system uses the training jobs launcher to efficiently run workloads on a managed cluster.
The architecture uses Amazon Elastic Container Registry (Amazon ECR) for container image management. Training jobs are executed across a distributed cluster, with seamless integration to multiple storage solutions, including Amazon Simple Storage Service (Amazon S3), Amazon Elastic File Storage (Amazon EFS), and Amazon FSx for Lustre. All of this runs under the SageMaker managed environment, providing optimal resource utilization and security.
This design simplifies the complexity of distributed training while maintaining the flexibility needed for diverse machine learning (ML) workloads, making it an ideal solution for enterprise AI development. The following image shows the solution architecture for SageMaker training jobs.
For this solution, consider a use case for a healthcare industry startup that aims to create an accurate, medically verified chat assistant application that bridges complex medical information with patient-friendly explanations. By fine-tuning DeepSeek-R1 Distill Qwen 7b using the FreedomIntelligence/medical-o1-reasoning-SFT dataset, you can use its medical reasoning capabilities to produce content that maintains clinical accuracy.
You need to complete the following prerequisites before you can run the DeepSeek-R1 Distill Qwen 7B model fine-tuning notebook.
p4d.24xlarge
instance (with 8 x NVIDIA A100 GPUs) ranging to a maximum of two p4d.24xlarge
instances (depending on time-to-train and cost-to-train trade-offs for your use case).On the Service Quotas console, request the following SageMaker quotas:
p4d.24xlarge
) for training job usage: 1–2p4d.24xlarge
) for HyperPod clusters (“ml.p4d.24xlarge
for cluster usage“): 1-2AmazonSageMakerFullAccess
and AmazonS3FullAccess
to give required access to SageMaker to run the examples.Next, we run the model_trainer_deepseek_r1_recipe_lora.ipynb notebook to fine-tune the DeepSeek-R1 model using QLoRA on SageMaker.
To prepare the dataset, you need to load the FreedomIntelligence/medical-o1-reasoning-SFT dataset
, tokenize and chunk the dataset, and configure the data channels for SageMaker training on Amazon S3. Complete the following steps:
def generate_prompt(data_point):
full_prompt = f"""
Below is an instruction that describes a task, paired with an input that provides further context.
Write a response that appropriately completes the request.
Before answering, think carefully about the question and create a step-by-step chain of thoughts to ensure a logical and accurate response.
### Instruction:
You are a medical expert with advanced knowledge in clinical reasoning, diagnostics, and treatment planning.
Please answer the following medical question.
### Question:
{data_point["Question"]}
### Response:
{data_point["Complex_CoT"]}
"""
return {"prompt": full_prompt.strip()}
# Load dataset from the hub
train_set = load_dataset(dataset_name, 'en', split="train[5%:]")
test_set = load_dataset(dataset_name, 'en', split="train[:5%]")
...
train_dataset = train_set.map(
generate_and_tokenize_prompt,
remove_columns=columns_to_remove,
batched=False
)
test_dataset = test_set.map(
generate_and_tokenize_prompt,
remove_columns=columns_to_remove,
batched=False
)
model_id = "deepseek-ai/DeepSeek-R1-Distill-Qwen-7B"
max_seq_length=1024
# Initialize a tokenizer by loading a pre-trained tokenizer configuration, using the fast tokenizer implementation if available.
tokenizer = AutoTokenizer.from_pretrained(model_id, use_fast=True)
...
train_dataset = train_dataset.map(tokenize, remove_columns=["prompt"])
test_dataset = test_dataset.map(tokenize, remove_columns=["prompt"])
arrow
files, which is required by SageMaker HyperPod recipes, and constructing the S3 paths where these files will be uploaded:train_dataset_s3_path = f"s3://{bucket_name}/{input_path}/train"
val_dataset_s3_path = f"s3://{bucket_name}/{input_path}/test"
train_dataset.save_to_disk(train_dataset_s3_path)
val_dataset.save_to_disk(val_dataset_s3_path)
The dataset above will be used in the examples for both SageMaker training jobs and SageMaker HyerPod.
To fine-tune the model using SageMaker training jobs with recipes, this example uses the ModelTrainer class.
The ModelTrainer class is a newer and more intuitive approach to model training that significantly enhances user experience and supports distributed training, Build Your Own Container (BYOC), and recipes. For additional information about ModelTrainer, you can refer to Accelerate your ML lifecycle using the new and improved Amazon SageMaker Python SDK – Part 1: ModelTrainer
To set up the fine-tuning workload, complete the following steps:
instance_type = "ml.p4d.24xlarge"
image_uri = (
f"658645717510.dkr.ecr.{sagemaker_session.boto_session.region_name}.amazonaws.com/smdistributed-modelparallel:2.4.1-gpu-py311-cu121"
)
checkpoint_s3_path = f"s3://{bucket_name}/deepseek-r1-distilled-qwen-7b-recipe-lora/checkpoints"
from sagemaker.modules.configs import CheckpointConfig, Compute, InputData, SourceCode, StoppingCondition
from sagemaker.modules.distributed import Torchrun
from sagemaker.modules.train import ModelTrainer
instance_count = 1
# Working override for custom dataset
recipe_overrides = {
...
"trainer": {
"num_nodes": instance_count,
...
},
...
"use_smp_model": False, # Required for PEFT
"model": {
"hf_model_name_or_path": model_id,
"data": {
"train_dir": "/opt/ml/input/data/train",
"val_dir": "/opt/ml/input/data/test",
},
},
}
# Define the compute
compute_configs = Compute(
instance_type=instance_type,
instance_count=instance_count,
keep_alive_period_in_seconds=0
)
model_trainer = ModelTrainer.from_recipe(
training_image=image_uri,
training_recipe="fine-tuning/deepseek/hf_deepseek_r1_distilled_qwen_7b_seq8k_gpu_lora",
recipe_overrides=recipe_overrides,
requirements="./requirements.txt",
compute=compute_configs,
...
checkpoint_config=CheckpointConfig(
s3_uri=f"{checkpoint_s3_path}/{job_prefix}"
),
)
You can point to the specific recipe with the training_recipe
argument and override the recipe arguments by providing a dictionary as argument of recipe_overrides
. In the previous example:
num_nodes
: Indicates the number of instances that will be used for the fine-tuning executioncheckpoint_dir
: Location in the container where the job will save model checkpointsThe ModelTrainer class simplifies the experience by encapsulating code and training setup directly from the selected recipe. In this example:
training_recipe
: hf_deepseek_r1_distilled_qwen_7b_seq8k_gpu_lora
is defining fine-tuning setup for the LoRA technique# starting the train job with our uploaded datasets as input
model_trainer.train(input_data_config=data, wait=True)
To fine-tune the model using HyperPod, make sure your cluster is up and ready by following the prerequisites. To access the login or head node of the HyperPod Slurm cluster from your development environment, follow the login instructions at Log in to your cluster in the Amazon SageMaker HyperPod workshop.
Alternatively, you can also use AWS Systems Manager and run a command like the following to start the session. You can find the cluster ID, instance group name, and instance ID on the Amazon SageMaker console.
aws ssm start-session --target sagemaker-cluster:[cluster-id]_[instance-group-name]-[instance-id] --region region_name
sudo su - ubuntu
to run the remaining commands as the root user unless you have a specific user ID to access the cluster and your POSIX user is created through a lifecycle script on the cluster. Refer to the multi-user setup for more details.# create a virtual environment
python3 -m venv ${PWD}/venv
source venv/bin/activate
# clone the recipes repository and set up the environment
git clone --recursive https://github.com/aws/sagemaker-hyperpod-recipes.git
cd sagemaker-hyperpod-recipes
pip3 install -r requirements.txt
# create a squash file using Enroot
REGION=<region>
IMAGE="658645717510.dkr.ecr.${REGION}.amazonaws.com/smdistributed-modelparallel:2.4.1-gpu-py311-cu121"
aws ecr get-login-password --region "${REGION}" | docker login --username AWS --password-stdin 658645717510.dkr.ecr.${REGION}.amazonaws.com
enroot import -o $PWD/smdistributed-modelparallel.sqsh dockerd://${IMAGE}
recipes_collection/config.yaml
file with the absolute path to the squash file (created in the preceding step), and update the instance_type
if needed. The final config file should have the following parameters:...
cluster_type: slurm
...
instance_type: p4d.24xlarge
...
container: /fsx/<path-to-smdistributed-modelparallel>.sqsh
...
aws s3 cp s3://{bucket_name}/{input_path}/train /fsx/ubuntu/deepseek/data/train --recursive
aws s3 cp s3://{bucket_name}/{input_path}/test /fsx/ubuntu/deepseek/data/test --recursive
main.py
file), which streamlines the process of fine-tuning and parameter adjustment. For fine-tuning the DeepSeek-R1 Qwen 7B model, you can find the specific script at:launcher_scripts/deepseek/run_hf_deepseek_r1_qwen_7b_seq16k_gpu_fine_tuning.sh
recipes.trainer.num_nodes
if you’re using a multi-node cluster):SAGEMAKER_TRAINING_LAUNCHER_DIR=${SAGEMAKER_TRAINING_LAUNCHER_DIR:-"$(pwd)"}
HF_MODEL_NAME_OR_PATH="deepseek-ai/DeepSeek-R1-Distill-Qwen-7B" # HuggingFace pretrained model name or path
HF_ACCESS_TOKEN="hf_xxxx" # Optional HuggingFace access token
TRAIN_DIR="/fsx/ubuntu/deepseek/data/train" # Location of training dataset
VAL_DIR="/fsx/ubuntu/deepseek/data/test" # Location of validation dataset
EXP_DIR="/fsx/ubuntu/deepseek/results" # Location to save experiment info including logging, checkpoints, etc
HYDRA_FULL_ERROR=1 python3 "${SAGEMAKER_TRAINING_LAUNCHER_DIR}/main.py"
recipes=fine-tuning/deepseek/hf_deepseek_r1_distilled_qwen_7b_seq16k_gpu_fine_tuning
base_results_dir="${SAGEMAKER_TRAINING_LAUNCHER_DIR}/results"
recipes.run.name="hf-deepseek-r1-distilled-qwen-7b-fine-tuning"
recipes.exp_manager.exp_dir="$EXP_DIR"
recipes.trainer.num_nodes=1
recipes.model.data.train_dir="$TRAIN_DIR"
recipes.model.data.val_dir="$VAL_DIR"
recipes.model.hf_model_name_or_path="$HF_MODEL_NAME_OR_PATH"
recipes.model.hf_access_token="$HF_ACCESS_TOKEN"
You can view the recipe for this fine-tuning task under, overriding any additional parameters as needed:
recipes_collection/recipes/fine-tuning/deepseek/hf_deepseek_r1_distilled_qwen_7b_seq16k_gpu_fine_tuning.yaml
bash launcher_scripts/deepseek/run_hf_deepseek_r1_qwen_7b_seq16k_gpu_fine_tuning.sh
You can monitor the job using Slurm commands such as squeue
and scontrol
show to view the status of the job and the corresponding logs. After the job is complete, the trained model will also be available in the results folder, as shown in the following code:
cd results
ls -R
.:
checkpoints experiment
./checkpoints:
full
./checkpoints/full:
steps_50
./checkpoints/full/steps_50:
config.json pytorch_model.bin
./experiment:
...
aws s3 cp /fsx/<path_to_checkpoint> s3://{bucket_name}/{model_prefix}/qwen7b --recursive
To objectively evaluate your fine-tuned model, you can run an evaluation job on the validation portion of the dataset.
You can run a SageMaker training job and use ROUGE metrics (ROUGE-1, ROUGE-2, ROUGE-L, and ROUGE-L-Sum), which measure the similarity between machine-generated text and human-written reference text. The SageMaker training job will compute ROUGE metrics for both the base DeepSeek-R1 Distill Qwen 7B model and the fine-tuned one. You can access the code sample for ROUGE evaluation in the sagemaker-distributed-training-workshop on GitHub. Please refer this notebook for details.
Complete the following steps:
trained_model = <S3_PATH>
instance_type = "ml.p4d.24xlarge"
image_uri = sagemaker.image_uris.retrieve(
framework="pytorch",
region=sagemaker_session.boto_session.region_name,
version="2.4",
instance_type=instance_type,
image_scope="training"
)
#763104351884.dkr.ecr.us-east-1.amazonaws.com/pytorch-training:2.4-gpu-py311
from sagemaker.modules.configs import Compute, InputData, OutputDataConfig, SourceCode, StoppingCondition
from sagemaker.modules.distributed import Torchrun
from sagemaker.modules.train import ModelTrainer
# Define the script to be run
source_code = SourceCode(
source_dir="./scripts",
requirements="requirements.txt",
entry_script="evaluate_recipe.py",
)
# Define the compute
...
# Define the ModelTrainer
model_trainer = ModelTrainer(
training_image=image_uri,
source_code=source_code,
compute=compute_configs,
...
hyperparameters={
"model_id": model_id, # Hugging Face model id
"dataset_name": dataset_name
}
)
# Pass the input data
train_input = InputData(
channel_name="adapterdir",
data_source=trained_model,
)
test_input = InputData(
channel_name="testdata",
data_source=test_dataset_s3_path, # S3 path where training data is stored
)
# Check input channels configured
data = [train_input, test_input]
# starting the train job with our uploaded datasets as input
model_trainer.train(input_data_config=data, wait=True)
The following table shows the task output for the fine-tuned model and the base model.
Model | Rouge 1 | Rouge 2 | Rouge L | Rouge L Sum |
Base | 0.36362 | 0.08739 | 0.16345 | 0.3204 |
Fine-tuned | 0.44232 | 0.13022 | 0.17769 | 0.38989 |
% Difference | 21.64207 | 49.01703 | 8.7121 | 21.68871 |
Our fine-tuned model demonstrates remarkable efficiency, achieving about 22% overall improvement on the reasoning task after only one training epoch. The most significant gain appears in Rouge 2 scores—which measure bigram overlap—with about 49% increase, indicating better alignment between generated and reference summaries.
Notably, preliminary experiments suggest these results could be further enhanced by extending the training duration. Increasing the number of epochs shows promising potential for additional performance gains while maintaining computational efficiency.
To clean up your resources to avoid incurring any more charges, follow these steps:
In the first post of this two-part DeepSeek-R1 series, we discussed how SageMaker HyperPod recipes provide a powerful yet accessible solution for organizations to scale their AI model training capabilities with large language models (LLMs) including DeepSeek. The architecture streamlines complex distributed training workflows through its intuitive recipe-based approach, reducing setup time from weeks to minutes.
We recommend starting your LLM customization journey by exploring our sample recipes in the Amazon SageMaker HyperPod documentation. The AWS AI/ML community offers extensive resources, including workshops and technical guidance, to support your implementation journey.
To begin using the SageMaker HyperPod recipes, visit the sagemaker-hyperpod-recipes repo on GitHub for comprehensive documentation and example implementations. Our team continues to expand the recipe ecosystem based on customer feedback and emerging ML trends, making sure that you have the tools needed for successful AI model training.
In our second post, we discuss how these recipes could further be used to fine-tune DeepSeek-R1 671b model. Stay tuned!
